FGKM-SS18 - FERN360 Key Management System - 18 Keys

FERN360 SKU: FGKM-SS18

Available Now!

Features

  • Big, bright 7″ Android touchscreen, easier-to-use interface
  • Robust, long-life key fobs with security seals

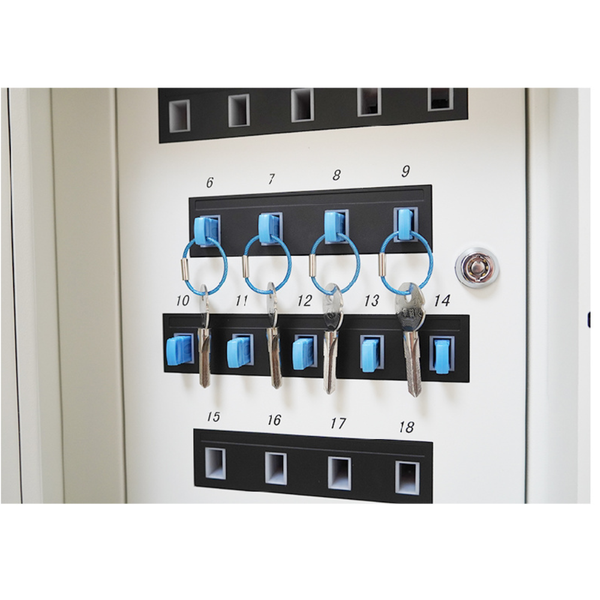

  • Keys or keysets are individually locked in place
  • Illuminated key slot
  • PIN, Card, Finger vein, Face ID to access designated keys
  • Keys are available 24/7 to authorized staff only
  • Standalone Edition and Network Edition
  • Keys audit and reporting capacity via screen/USB port/Web
  • Audible and visual alarms
  • Emergency Release System
  • Multi-system networking

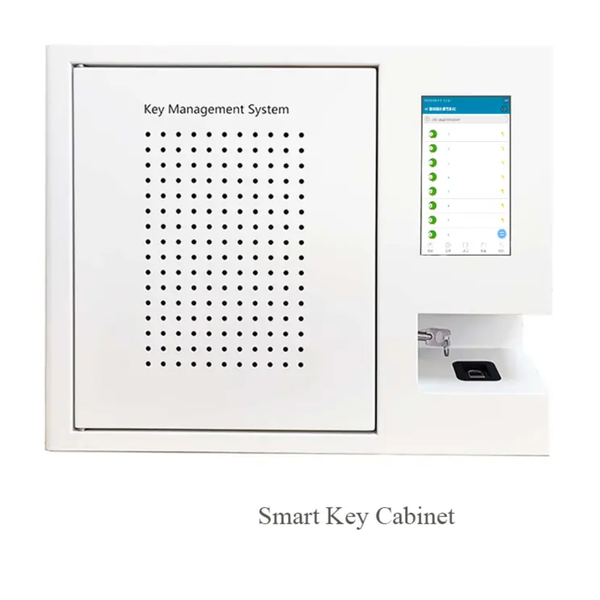

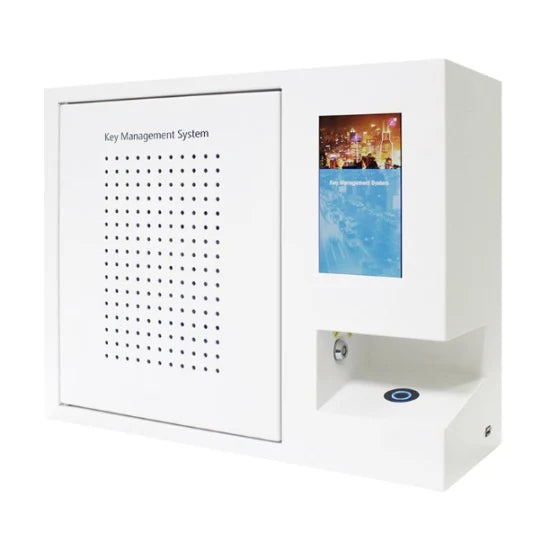

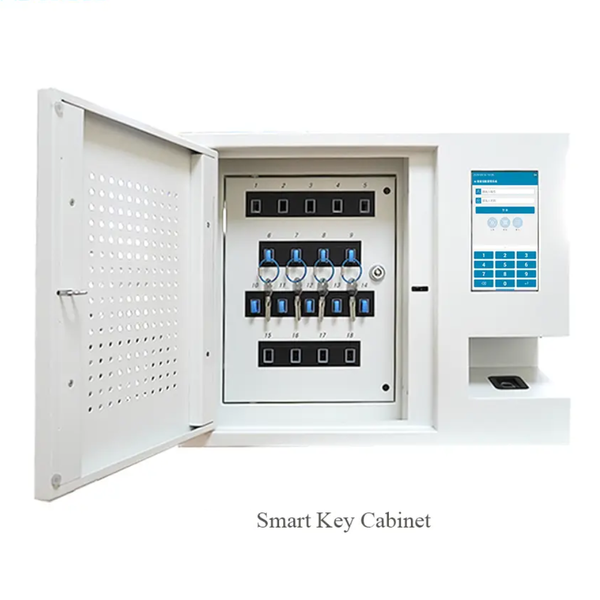

FGKM-SS18 Smart Key Cabinet: Enhancing Security and Accountability

The FGKM-SS18 Smart Key Cabinet is an advanced key management system designed to meet the stringent security needs of modern organizations. Crafted from durable steel and equipped with state-of-the-art electronic controls, this cabinet ensures that keys and other valuable assets are safeguarded against unauthorized access.

Key Features:

  1. High-Level Security: The electronically controlled steel cabinet provides a robust barrier against unauthorized access. Only personnel with the proper authorization can gain entry, ensuring that keys remain secure at all times.

  2. Accountability Records: The FGKM-SS18 meticulously tracks key removals and returns, recording vital information such as who accessed the keys and when. This feature enhances accountability within the organization and facilitates easy auditing of key usage.

  3. Smart Key Fob Integration: For added convenience and security, the FGKM-SS18 supports smart key fobs. These fobs securely lock keys in place within the cabinet and continuously monitor their status, ensuring that keys are always accounted for and ready for use.

  4. Customizable Access Control: Administrators can customize access permissions based on user roles and responsibilities, allowing for fine-grained control over who can access specific keys or key sets.

  5. User-Friendly Interface: The FGKM-SS18 features an intuitive interface that simplifies key management tasks. Personnel can easily locate and retrieve keys as needed, streamlining day-to-day operations.

Applications:

The FGKM-SS18 Smart Key Cabinet is ideal for a wide range of applications, including:

  • Corporate Offices: Safeguarding keys to sensitive areas such as server rooms, executive offices, and equipment storage areas.
  • Healthcare Facilities: Ensuring secure access to medication cabinets, supply rooms, and restricted areas.
  • Educational Institutions: Managing access to classrooms, laboratories, and administrative offices.
  • Hospitality Industry: Securing access to guest rooms, storage areas, and back-of-house facilities.





Specifications





Physical
Dimensions W500mm X H180mm X D400mm(W19.7" X H7.1" X D15.7")
Net Weight approx. 16Kg (37.3 lbs)
Body Materials Cold Rolled Steel
Key Capacity up to 18 keys or key sets
Colors White, Gray, or custom
Installation Wall Mounting
Environmental suitability -20° to +55°C, 95% non-condensing relative humidity. Suitable for indoor use and can be installed outdoors if directly protected. The key cabinet is weather-resistant but should not be left out in the open and directly exposed to rain or snow.
Communication
Communication 1 * Ethernet RJ45, 1 * Wi-Fi 802.11b/g/n
USB 1 * USB port outside
Controller
Operating System Based on Android
Memory 2GB RAM + 8GB ROM
UI
Display 7" 600*1024 pixels fullview touchscreen
Fingerprint Reader Capacitive fingerprint sensor
RFID Reader 125KHz +13.56MHz dual frequency card reader
Phsical Button 1 * Reset button
Speaker Have
Power
Power Supply In: 100~240 VAC, Out: 12 VDC
Consumption 12.5W max, typical 8W idle
Certificates
Certificates CE, ROHS, FCC, UKCA
Package details
- A-180E Smart Key Cabinet,- Power Cable,- 23 pieces of key tags,- 23 pieces of key seals,- Installation bracket and other components.
