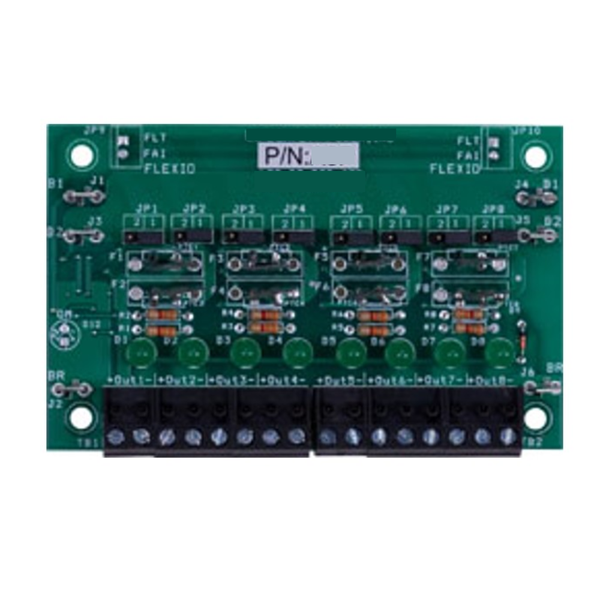

FPAC-BA8P - FERN360 4 Out AC distribution module, class 2 power limited at 2.5A per Output, each Output selectable for Bus1 or Bus2


Available Now!


The A8P simple distribution accessory provides eight zones of PTC-protected AC distribution with no built-in control features. The A8P is capable of distribution of one or two AC voltages. Each zone output is selectable for either input voltage by zone.

  • Dual Buss Architecture for field selectable 24 or 28VAC output
  • ATM style fuse: 3A/per output
  • AC On (green LED per output)

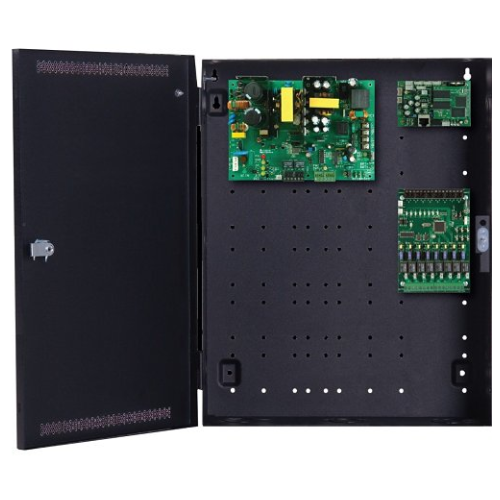

  • Multiple modules can be daisy chained to add additional outputs
  • Snap-in style mounting standoffs with fast-on connect cables for easy field installation
  • 2.5A (Class 2 Power Ltd)
