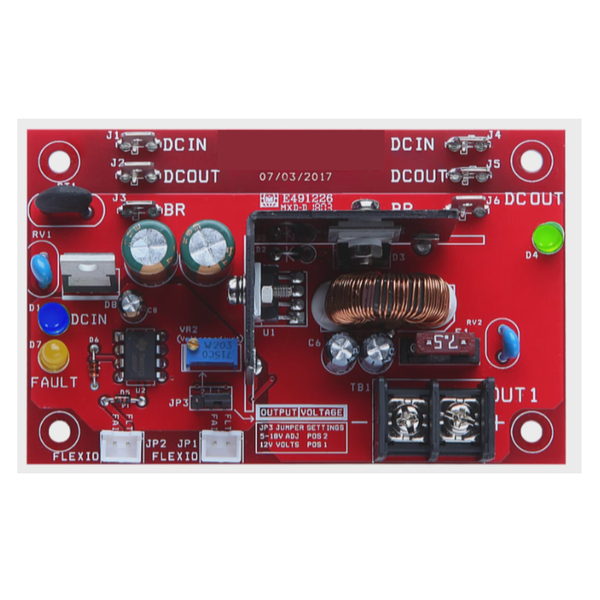

FPAC-BB100 - FERN360 12V secondary voltage power module. Adjustable 5-18V Output @ 4A max, class 2 power ltd

FERN360 SKU: FPAC-BB100

Available Now!

Features

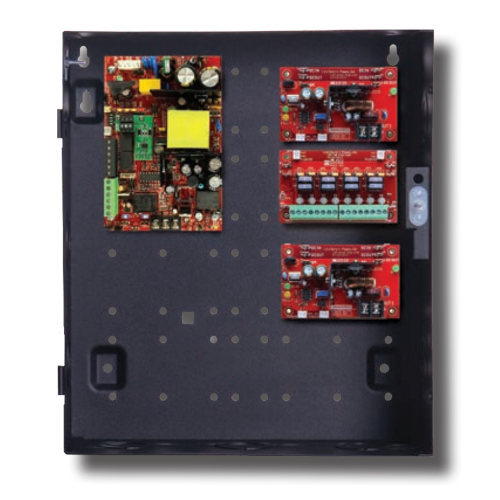

The FPAC-BB100 secondary voltage module provides a means to easily and economically add an additional voltage to any FlexPower system. Primary power for the FPAC-BB100 is derived from an BPO power supply and the FPAC-BB100 steps the FPO voltage down to the user defined ran



Type:Programmable Voltage Power Supply
Rating - Watts:59.5 w
Input VDC Range:12 to 24 VDC
Number of Outputs:2
Output VDC Nominal:12/5 to 18 VDC Selectable
Output Current Nominal:4 A
Efficiency:91%
Mounting:Snap-In
Dimensions: HxWxD: 4 x 2 x 1.5 in. (102 x 64 x 45mm)
Rating/​Application: Class 2
