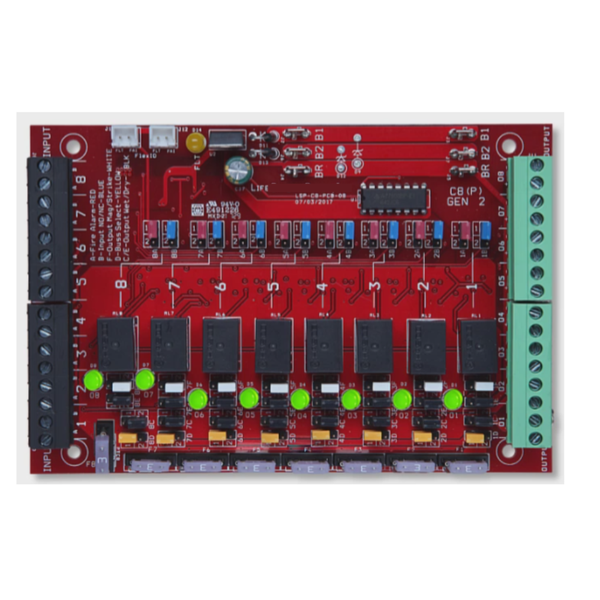

FPAC-BC8 - FERN360 8 Out Lock distribution module, fused at 3A per Output, each Output selectable for FAI, failsafe, failsecure, Bus1 or Bus2


Available Now!


Power Controller Modules
Expand the number of system power outputs controlled by the access control system.
Program for fail-safe, fail-secure, dry contact or continuous voltage output

FPAC-BC4 and FPAC-BC8 power controller modules provide 4 or 8 relay controlled, protected outputs and 4 or 8 access control inputs. When used in a single voltage system, each individual output may be programmed for a continuous output or to respond to the input from the access control system. A fire alarm interface to over ride the access control system for control of egress locks is provided for each output. When used in a dual voltage system, each individual output zone may be programmed to operate with either of the two system voltages.

Product highlights

  • Listed for Fire Alarm, Intrusion, Access Control, CCTV and Mass Notification
  • Provides 4 or 8 trigger input zones for interface to an access control system
  • Provides 4 or 8 relay controlled output zones
  • Accommodates failsafe or failsecure locking devices
  • Provides fire alarm interface for egress lock control
  • Monitors fuse integrity of output zones and reports fault to host power supply
  • Status LEDs report zone activity
  • Each output zone is fused at 3A or 2.5A for PTC circuit breakers
  • PTC versions are low voltage, Class 2 power limited
  • Allow selection by zone from two voltage sources


  • Simple field selectable switch sets either 12 or 24V DC output
  • system minimizes installation labour by using board buss structure to eliminate accessory board interwiring
  • Configuration jumpers are colored by function for ease of programming
        - FAI

        - NC/NO input

        - WET/DRY output

        - V SELECT

      - FAIL SAFE/SECURE output



  • Expand number of voltage outputs in increments of eight
  • Add FAI functionality on a per zone basis
  • Add simultaneous failsafe & fail secure voltage outputs
  • Pre-punched cabinet layout allows expansion board additions with minimal labour
