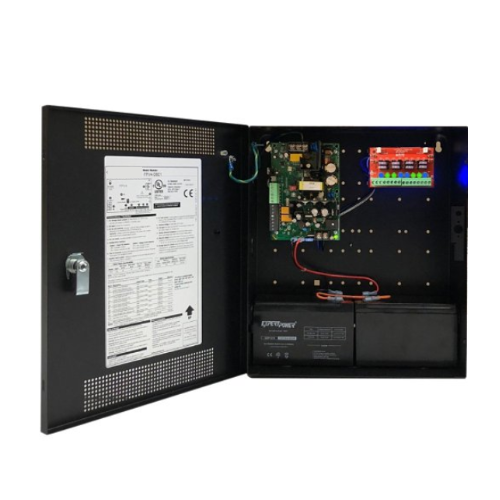

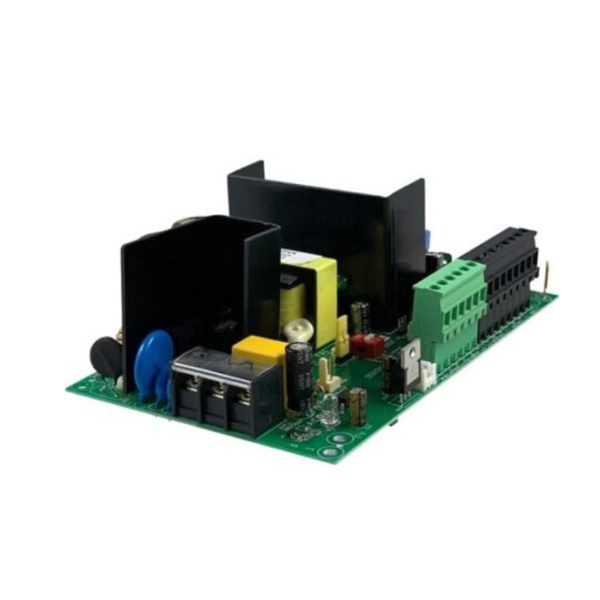

FPAC-BPV4 - FERN360 Power supply board, 4A/12V or 3A/24V


Available Now!

  • Supplies power to the electrical load to keep up with the power requirements
  • 12 V DC @ 4 A ensures the safety of your device
  • Low battery cutoff protects batteries from deep discharge


SPECIFICATIONS Input – 120/208/230VAC, 50/60Hz – 1.80 Amp maximum Outputs – 4A @ 12VDC | 3A @ 24VDC – Main output continuous or switched on FAI Input – Auxiliary 1.5 Amp output Class II power limited – Overload & short circuit protection with auto-restart Battery Backup: – Built-in 1 Amp Fast Charger – Instant auto-switch to battery on AC loss – Zero transfer time when switching to battery power Supervision: – AC fail, Battery fail, System fault (form "C") – Low power shutdown when battery voltage too low Fire Alarm Disconnect Activation: – DC voltage: 9 to 33VDC, 3 to 15mA – Dry contact NO/NC – Optional Fire Alarm latching Visual indicators: – AC On, DC output, Fire Alarm activation
