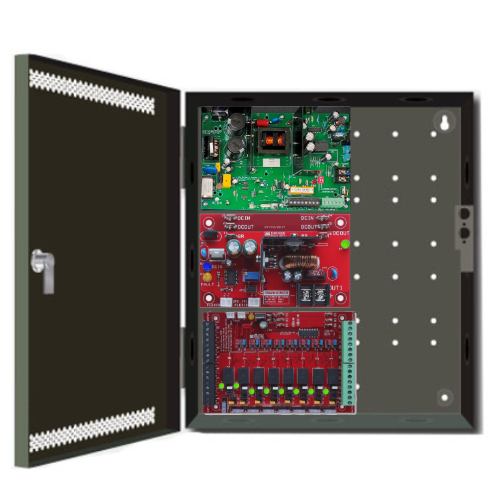

FPAC-PKV6-B100R8EE1 - FERN360 Dual Voltage 4A/12V and 4A/24V, 8 Lock Fused


Available Now!


FPAC-PKV4-B100EE1 - FERN360 Dual Voltage 2A/12V 2A/24V, (36 x 30 x 11 cm)

Kit Includes

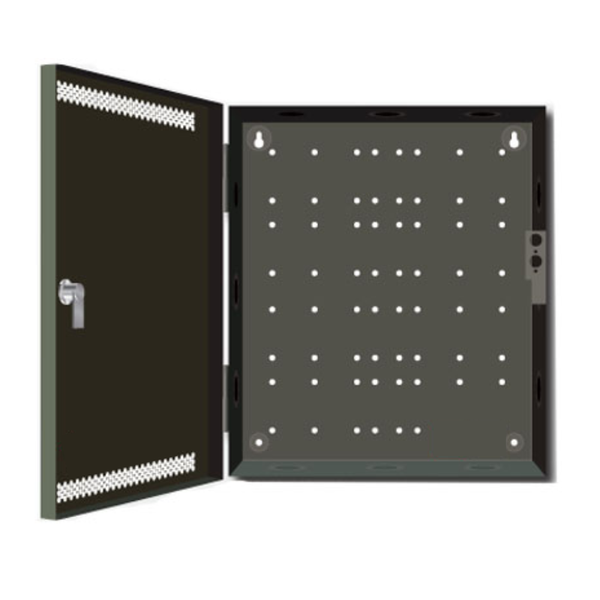

  • 1x FPAC-EE1 - Enclosure (36 x 30 x 11 cm)

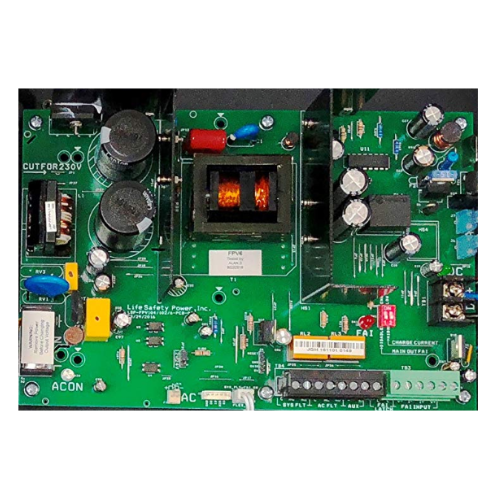

  • 1x FPAC-BPV6 - Power supply board, Voltage 4A/12V and 4A/24V

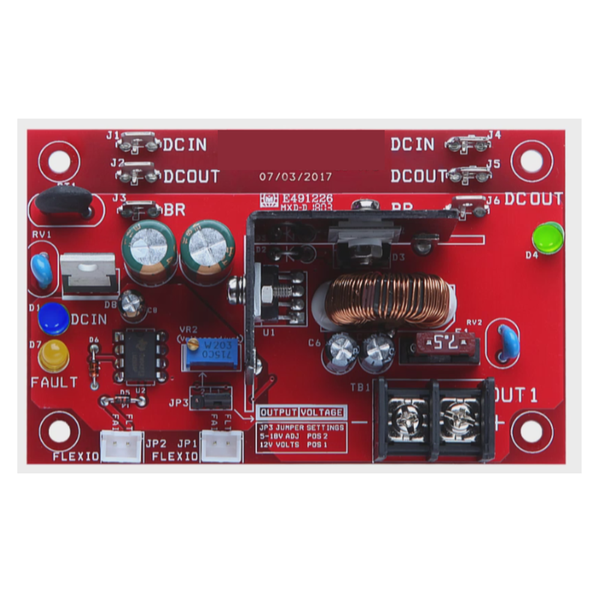

  • 1x FPAC-BB100 - 12V secondary voltage power module
  • 1x FPAC-BR8 - 8 Out Lock distribution module, fused at 3A per Output

FERN360 Vantage DC power supply/chargers series offers enhanced performance with these standard features:

  • 120/230VAC input for global operation
  • Built in Fire Alarm disconnect on a per output basis (R8 models)
  • Locksafe™ runs locks 30% cooler
  • Low battery cutoff protects batteries from deep discharge
  • Dedicated fast charger prolongs battery life
  • Bi-Color LEDs visually confirm 12 or 24V output setting
  • Enhanced surge immunity for input/output protection
  • Network ready with optional Netlink module
                              Monitor ac line voltage & other parameters in NetLink dashboard
                              Remote test batteries / cycle outputs through any IP connection
  • Lifetime Warranty
