FPAC-ERS3643 - FERN360 Access Control Reader or Intercom Mounting Panel


Available Now!

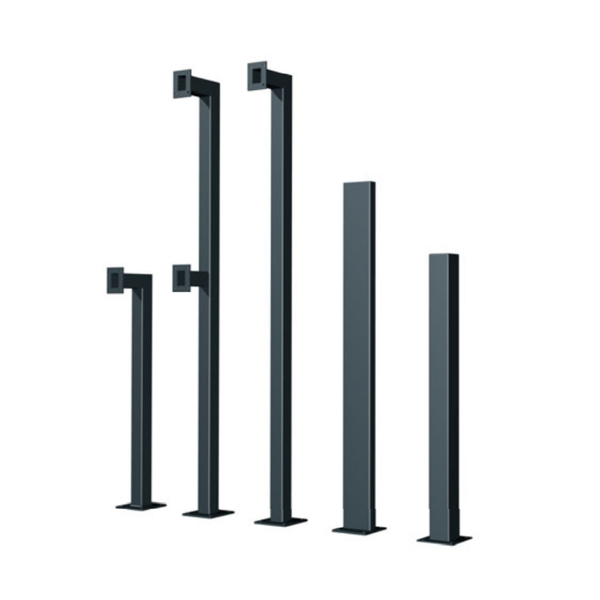

The EQ Series of bollards accommodate a range of access control accessories including proximity readers, intercoms, push buttons, cameras and access keypads. The integrated rain and sun shields make the range suitable for both indoor and outdoor applications.

The FPAC-ERH3643 mounting panel for access control bollards measures 360mm (W) x 435mm (H) with a integrated rain hood. The mounting board is constructed in 10mm polyethelene black eco board and has 60mm space behind the panel.


  • Measures 360mm (W) x 435mm (H)
  • Integrated rain shield
  • Choice of black, Blue or yellow powder coat as standard
  • Suits all SEQ Series wall mount and floor mount bollards
  • Suitable for proximity readers, intercoms, push buttons, cameras and access keypads
  • Indoor or outdoor use
  • Inner Colours - Black or Silver
  • 60mm installation space



Construction Duragal
Finish Primed in epoxy zinc powder coat and finished in either black or yellow polyester powder coat.
Dimensions 360mm (W) x 435mm (H)
Cabling Space 60mm
